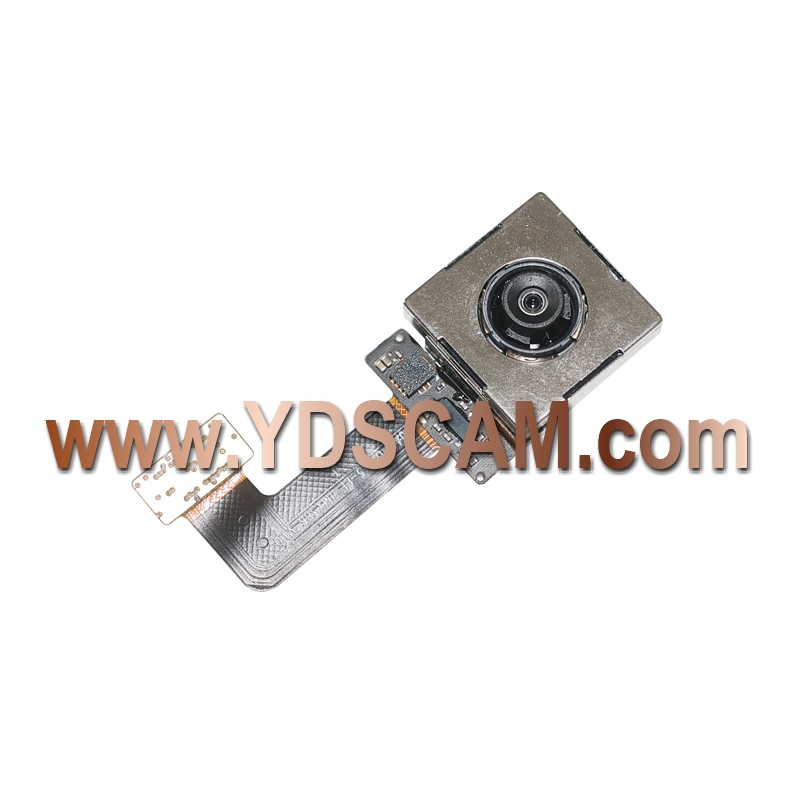

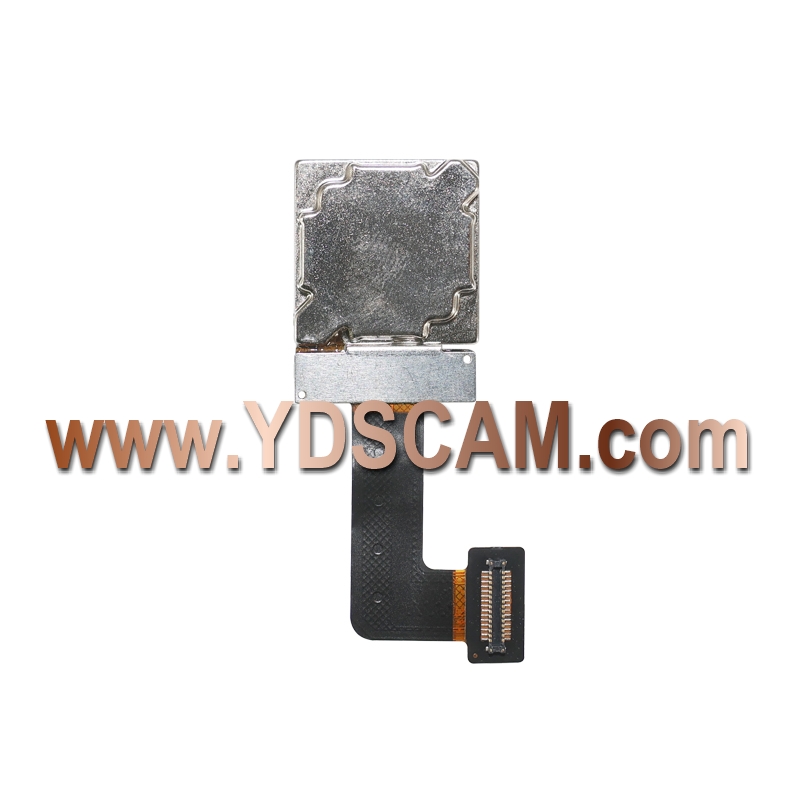

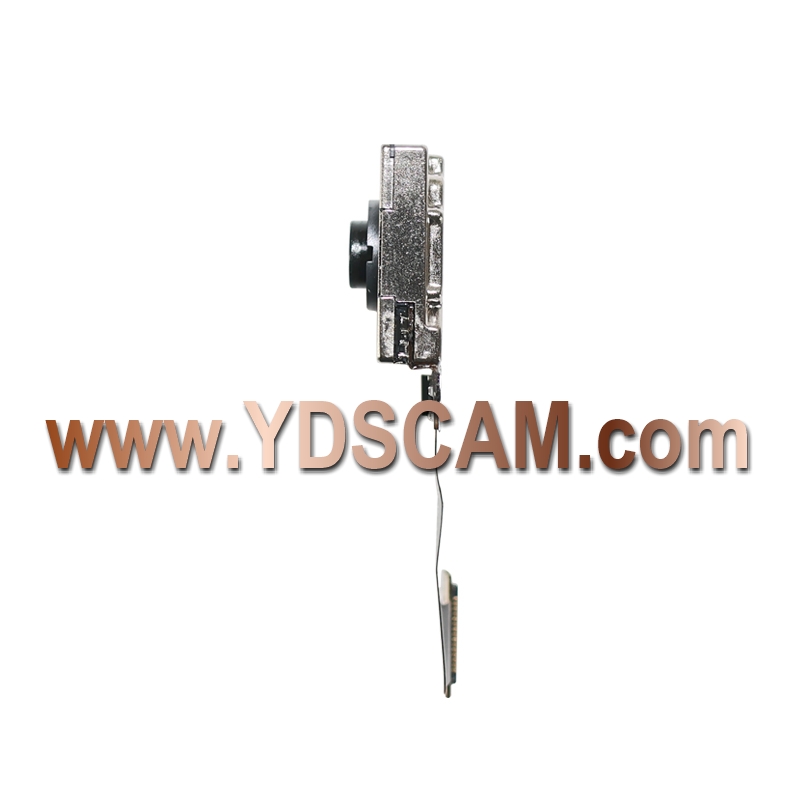

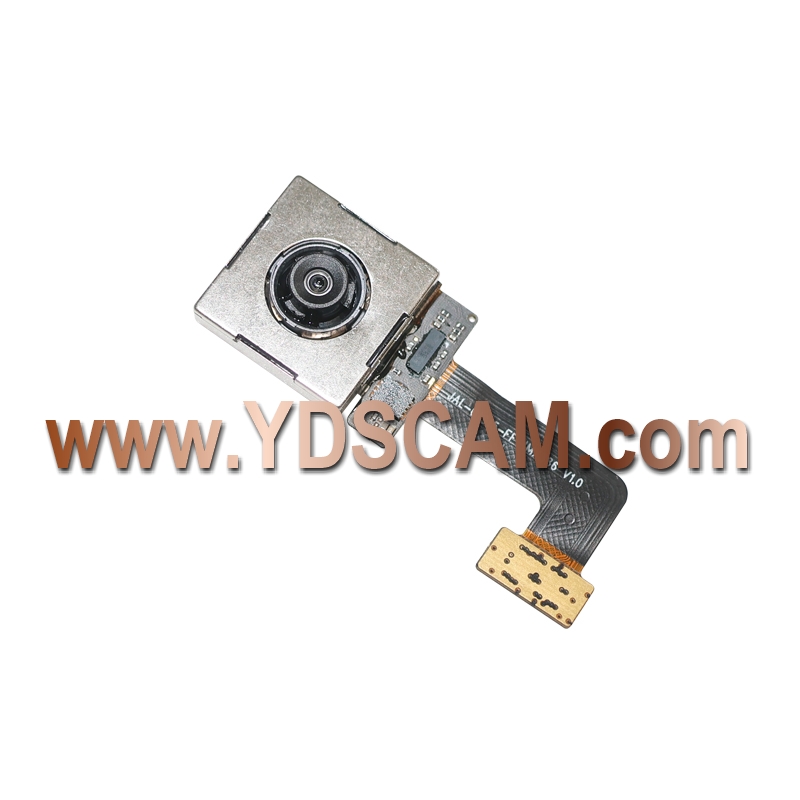

| 12MP Sony IMX386 OIS MGS MIPI Interface Fixed Focus Camera Module |
| Model No. YDS-OIS-OFA68-IMX386 V1.0 |
| Camera Module No. |
YDS-OIS-OFA68-IMX386 V1.0 |
| Resolution |
12MP |
| Image Sensor |
IMX386 w/ MGS OIS |
| Sensor Type |
1/2.86" |
| Pixel Size |
1.25 um x 1.25 um |
| EFL |
2.31 mm |
| F.NO |
2.20 |
| Stabilization Method |
Optical Image Stabilization (OIS) |
| Stabilizer Type |
Micro Gimbal Stabilizer (MGS) |
| Stabilizer Axis No. |
2 Axis (Pitch and Yaw) |
| Stabilizer Angle |
Max. 3.0° |
| Stabilizer Power |
180 mW |
| Pixel |
4208 x 3120 |
| View Angle |
123.0°(DFOV) 100.7.0°(HFOV) 81.0°(VFOV) |
| Lens Dimensions |
15.40 x 15.40 x 6.82 mm |
| Module Size |
41.75 x 19.15 mm |
| Module Type |
Fixed Focus |
| Interface |
MIPI |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-20°C to +70°C |
| Mating Connector |
OK-14F030-04 |
|
