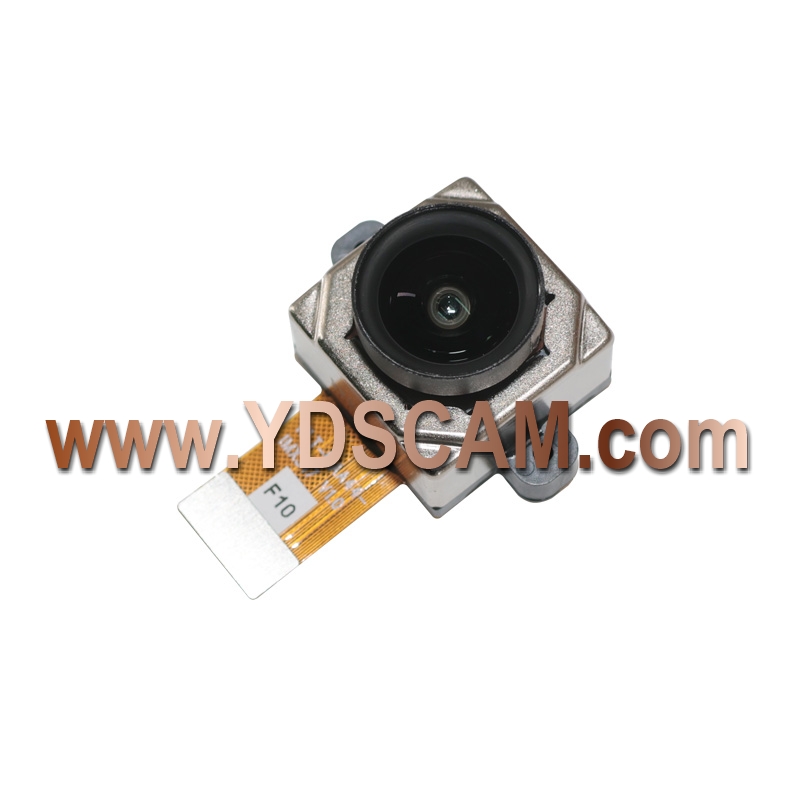

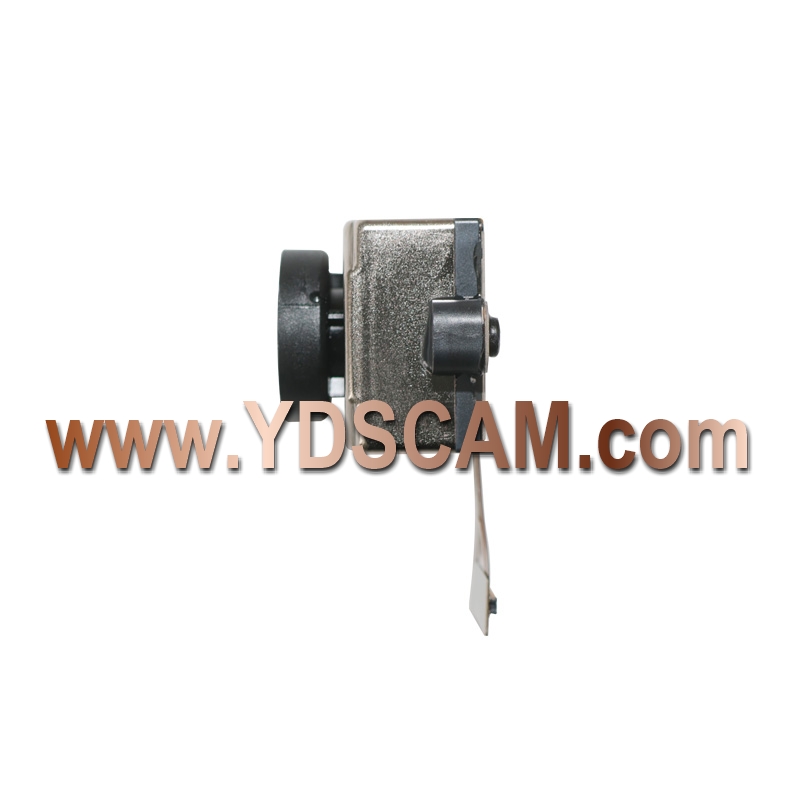

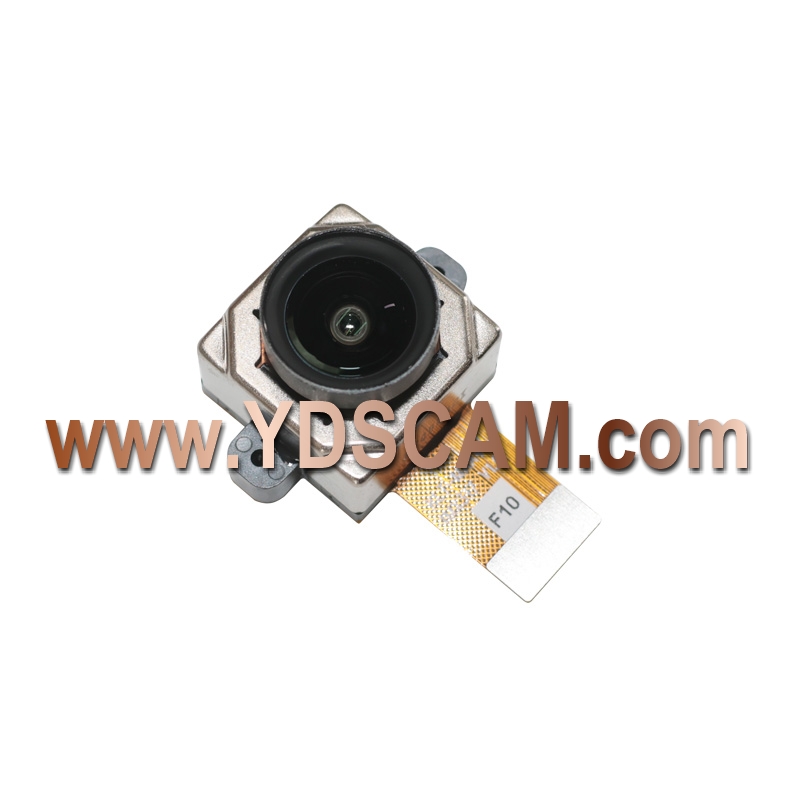

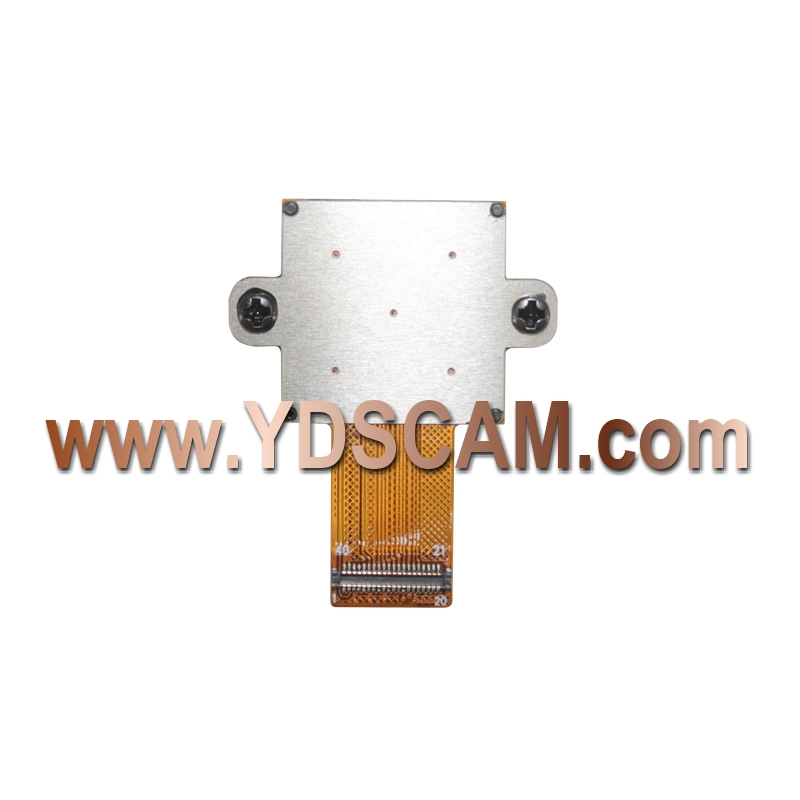

| 8.51MP Sony IMX317 MIPI Interface M12 Auto Focus Camera Module |
| Model No. YDS-MAA44-IMX317 V1.0 |
| Camera Module No. |
YDS-MAA44-IMX317 V1.0 |
| Resolution |
8.51MP |
| Image Sensor |
IMX317 |
| Sensor Type |
1/2.5" |
| Pixel Size |
1.62 um x 1.62 um |
| EFL |
3.38 mm |
| F.NO |
2.20 |
| Pixel |
3840 x 2160 |
| View Angle |
85.8°(DFOV) 77.5°(HFOV) 48.8°(VFOV) |
| Lens Dimensions |
18.00 x 18.00 x 16.30 mm |
| Module Size |
33.00 x 22.00 mm |
| Module Type |
Auto Focus |
| Interface |
MIPI |
| Auto Focus VCM Driver IC |
DW9714P |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-10°C to +75°C |
| Mating Connector |
AXE530124 |
|
